ANSI/VITA 57 FMC library for Altium Designer

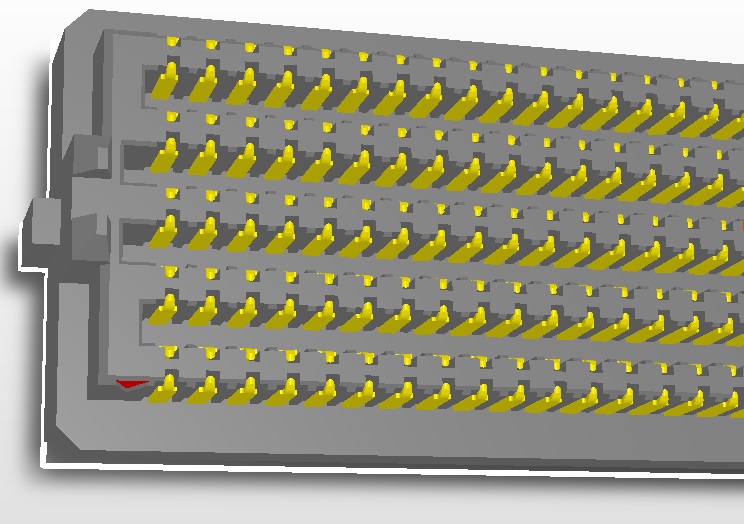

This is a schematic and footprint library for printed circuit boards (PCB) to be designed with Altium Designer. Various components for a professional PCB design according to ANSI/VITA 57 FMC standard, such as connectors, mounting holes, and thermal interfaces are included.

View Wiki
Repository
  • Post date
    1. May 2017
