FMC LPC Breakout Module

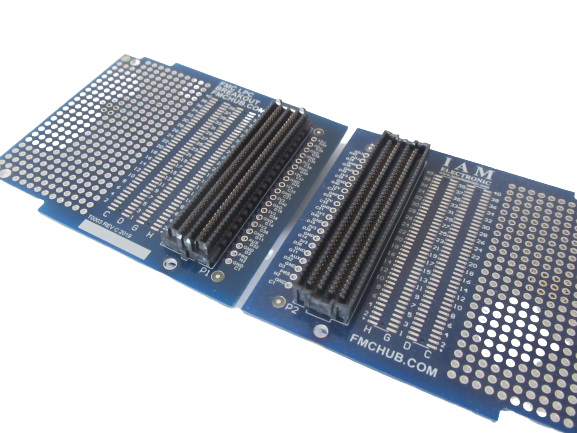

The FMC LPC Breakout board is a passive adapter for accessing all signals of ANSI/VITA 57.1 FPGA Mezzanine Card (FMC) Standard compliant low-pin count (LPC) connectors. It includes a prototyping area with a 2.54 mm grid and a separate breakout of the power pins. A single board contains mezzanine and carrier connectors to simplify testing and debugging with a stacked assembly.
